Landing Gear
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality testing passed by an independent lab
Warranty: 16 months since shipping date
100% quality inspection before shipment
Oversea sales volume (pairs): 50,000+
Product Description：

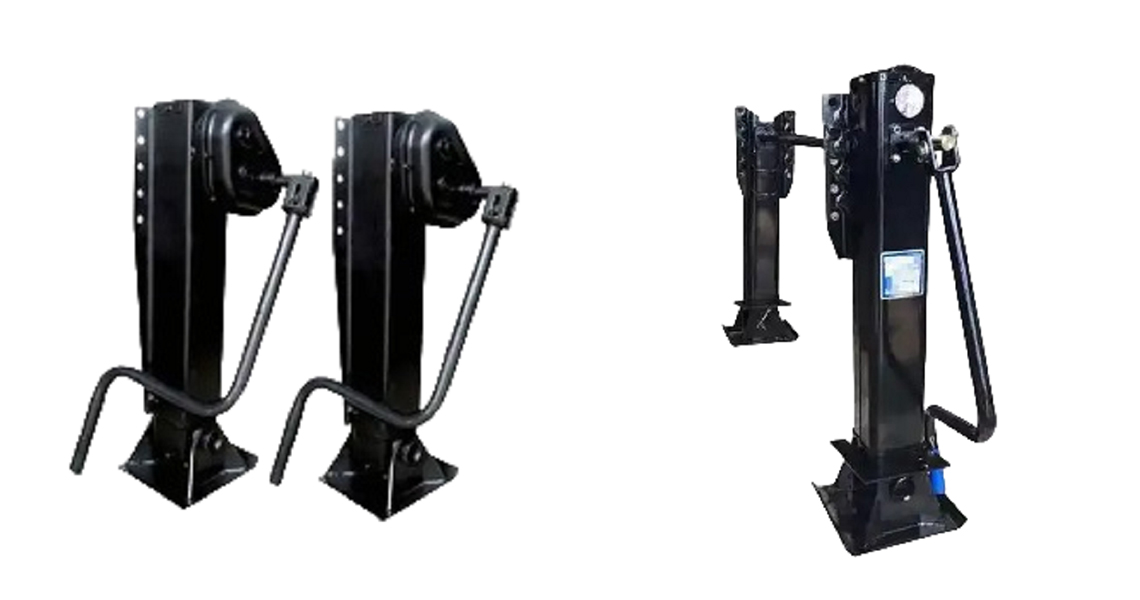

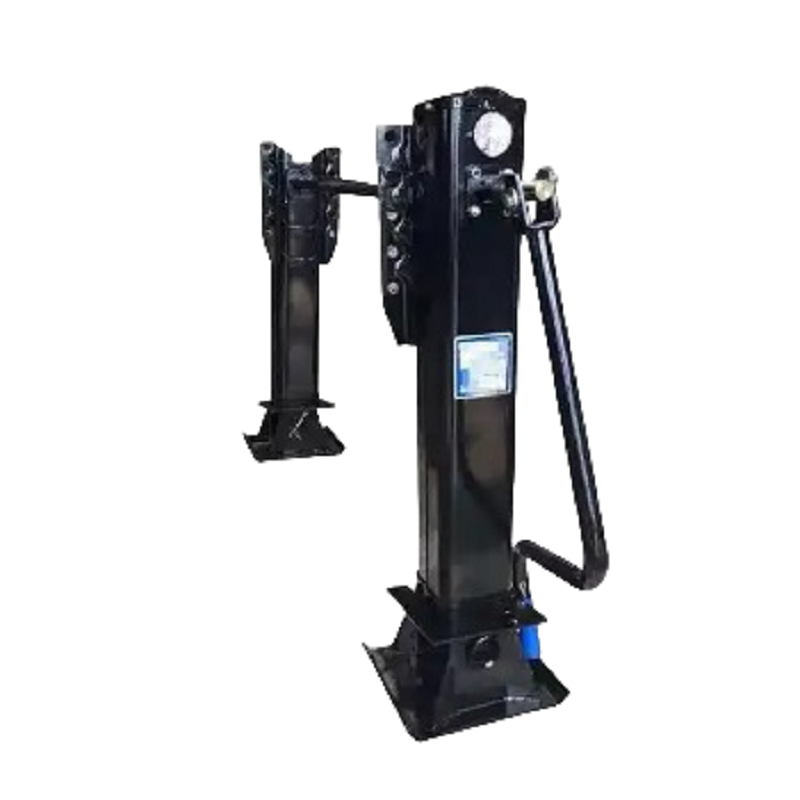

Landing gear for semi-trailers, often referred to as "landing legs," are the retractable supports that stabilize the front end of the trailer when it's not attached to a truck. Here are some key points about them:
Function: Landing gear helps support the trailer's weight and provides stability while loading and unloading. They ensure the trailer remains upright when disconnected from the tractor.
Types:
Manual Landing Gear: Operated by a hand crank, these are simple and reliable but require physical effort.
Electric Landing Gear: Uses a motor to extend or retract the legs, making it easier to operate, especially in challenging conditions.
Components: Typically includes two legs (one on each side), a gearbox for the cranking mechanism, and sometimes a base plate for added stability.
Height Adjustment: The legs can be adjusted to accommodate different heights of tractors or loading docks.
Durability: Designed to withstand heavy loads and harsh conditions, landing gear must be regularly maintained to ensure safety and functionality.
Product Parameters：
Model | Static Load | Static Load | Gear Box Model | Weight | Height(A) | Lifting(D) |
XH-25T | 25000kg | 72000kg | Inside | 102kg | 840mm | 480mm |
XH-28T | 28000kg | 80000kg | Outside | 105kg | 840mm | 480mm |
XH-30T | 30000kg | 85000kg | Outside | 108kg | 853mm | 480mm |
Application：
Landing gear for semi-trailers plays a crucial role in various applications, ensuring stability and safety during loading, unloading, and parking. Here are some key applications:
Loading and Unloading: Landing gear supports the trailer when it is detached from the tractor, allowing for safe loading and unloading of cargo.
Stability: They prevent the trailer from tipping over or shifting while stationary, especially on uneven surfaces.
Parking: When a trailer is parked, the landing gear helps keep it stable, reducing the risk of movement or accidents.
Transitioning Between Loads: They allow for quick and safe detachment and attachment of the trailer, facilitating efficient freight operations.
Docking Operations: In shipping and receiving environments, landing gear ensures that trailers remain stable at loading docks, making the transfer of goods safer.
Customization for Specific Loads: Some landing gear can be adjusted for height to accommodate different types of cargo or loading conditions.
Emergency Situations: In the event of a tractor failure, functional landing gear ensures the trailer remains upright and stable.
