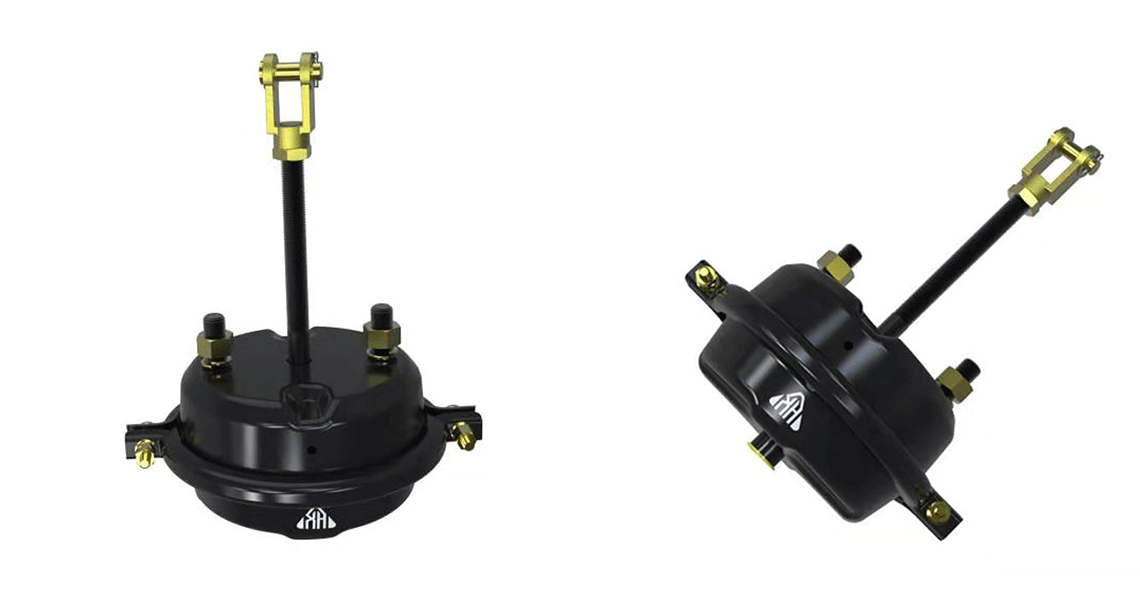

China Trailer Brake Chamber
20+ years of experiences (since 2005)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality Standards: SAE J14659
Return spring：>2,000,000 cycles
Life-time: >1,000,000 cycles
Salt spray test: Passes 200 hours
Synthetic blended rubber diaphragms: Superior resistance against abrasion and fatigue cracking
Product Description:
Type: Various sizes available, such as Type 24 or Type 30
Material: Made from durable materials like cast iron or aluminum alloy
Design: Can feature universal mounting designs for easy installation
Quality: Quality standards may vary based on the manufacturer and supplier
Cost: Often competitively priced compared to brake chambers from other regions
Availability: Widely available through Chinese manufacturers and international distributors
Parameters:
| Type | Stroke | R1 | R2 | L1 | L2 | Pushrod Thread Length L4 | Pushrod Thread | Air Inlet Thread | Mounting Bolt Thread | Mounting Inluded Angle | Weight |
| T-24 | 64 | 116 | 93 | 110 | 227 | 207 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 4kgs |
| T-30 | 64 | 130 | 106 | 110 | 255 | 255 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 4.6kgs |
| Type | Chamber Volume(Litre) (Measure Pressure:700kpa) | Parking Chamber Force Output (kn) | (Stroke:38mm) | Diaphragm | |||||||
| 400kpa | 700kpa | Working Area(SQ cm) | Dia.At Clamp Point (mm) | ||||||||
| T-24 | 1.08 | 5.58 | 9.8 | 141 | 161 | ||||||
| T-30 | 1.48 | 7.3 | 12.8 | 180 | 181 | ||||||
Applications:
A trailer brake chamber manufactured in China is designed for use in the air brake system of trailers. It serves the same function as brake chambers made in other countries, converting air pressure from the braking system into mechanical force to actuate the brakes when the driver applies pressure on the brake pedal. The application of a China-made trailer brake chamber is to ensure effective braking performance and safety for trailers during operation on the road. It is an essential component that works in conjunction with other brake system parts to help control and slow down the trailer when needed.
