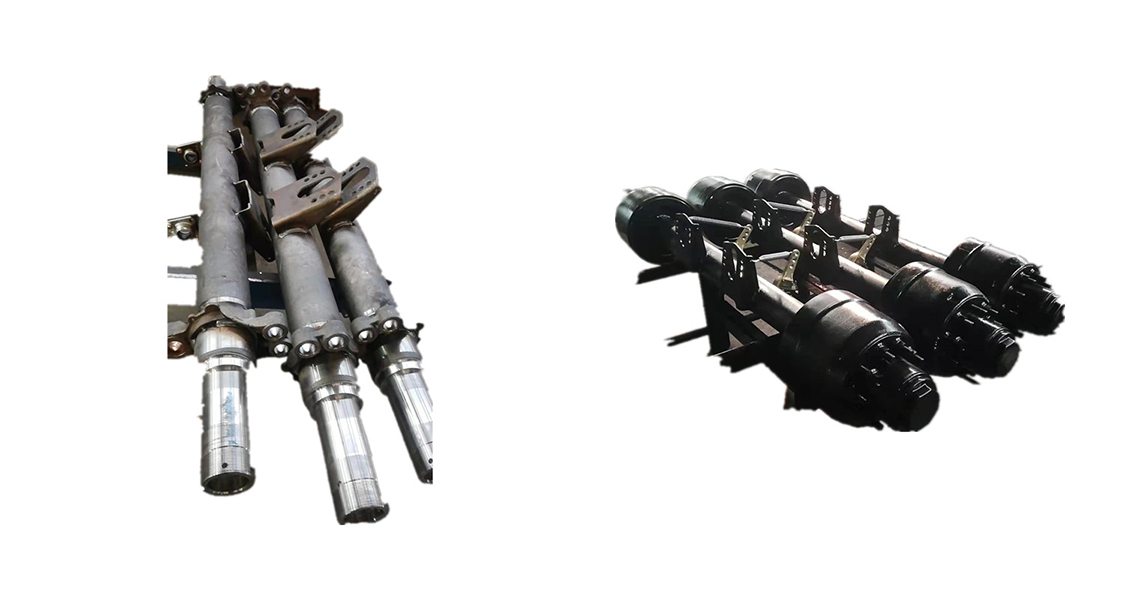

3 Alxes Lowboy Low Bed Trailer Axle
20+ years of experiences (since 2005)
Implementing ISO 9001-2015
Quality testing by an independent laboratory
Warranty: 12 months since shipping date
Fatigue life: 1,700,000 cycles
Bearing position machining precision (Dia.): 0~0.025mm
Brake shoe: cylindrical grinding
Both ends of the beam are processed at the same time
The low bed Trailer Axle refers to the main structural component of the low bed trailer, on which the wheel hub and tires are mounted. The axle is responsible for helping support the weight of the trailer and its cargo, as well as facilitating smooth, controlled movement on the road. Low bed trailers have lower deck height to facilitate loading and unloading of tall or heavy equipment. Axle configurations on low-bed trailers may vary depending on the design and intended use of the trailer, with options for single, dual, or even multiple axles for efficient weight distribution.
Product parameters:
Axle Type | Max Capacity | Track | Brake | CentreDistance | Axle Beam(mm) | Centre Distance | Wheel Fixing | Recom | (kg) Axle Weight | Note | |||
Stud | D1P.C.D | D2 Hole Diameter | Total Length | ||||||||||
XH-10.5 | 12 | 1820 | 420*180 | ≥950 | o127 | 368 | 10*M22*1.5 | 285.75 | 221 | ~2165 | 7.5V-20 | 360 | Bearing(Inner)HM518445/10 |
XH-10.5 | 12 | 1820 | 420*180 | ≥950 | o127 | 368 | 10*M22*1.5 | 335 | 281 | ~2165 | 7.5V-20 | 363 | |
XH-13 | 13 | 1840 | 420*180 | ≥930 | 150*150 | 388 | 10*M22*1.5 | 285.75 | 281 | ~2185 | 7.5V-20 | 363 | Bearing(Inner)HM518445/10 |
XH-13 | 13 | 1840 | 420*180 | ≥930 | 150*150 | 388 | 10*M22*1.5 | 335 | 281 | ~2185 | 7.5V-20 | 370 | |
XH-15 | 15 | 1850 | 420*180 | ≥940 | 150*150 | 396 | 10*M22*1.5 | 335 | 281 | ~2185 | 8.0V-20 | 398 | Bearing(Inner)HM220149/10 |
XH-16 | 16 | 1850 | 420*220 | ≥940 | o127 | 354 | 10*M22*1.5 | 335 | 281 | ~2185 | 8.00V-20 | 423 | |
XH-16 | 16 | 1850 | 420*220 | ≥940 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | ~2205 | 8.00V-20 | 425 | |
Application:
The low bed trailer axle plays a crucial role in the overall performance and functionality of the low bed trailer. Some key applications for low bed trailer axles include:
Load capacity: The axle is designed to efficiently support and distribute the weight of the trailer and its cargo. Depending on axle capacity and configuration, it determines how much weight the trailer can safely carry.
Maneuverability: The axle allows the trailer to turn, rotate and turn smoothly. Axle design, such as wheelbase and wheelbase, affects the maneuverability of the trailer in tight Spaces or challenging terrain.
Stability: Axles help maintain the stability and balance of the trailer, especially when loading and transporting heavy equipment or machinery. Proper axle placement and alignment is essential for safe and reliable transportation.
Suspension: Axles are often integrated with suspension systems to absorb shock and vibration during driving, ensuring a smoother ride and reducing wear and tear on the trailer and its cargo.
Compatibility: Axles must be compatible with the overall trailer design and construction. When choosing an axle for a low flatbed trailer, factors such as wheelbase, tire size and brake system integration are factors that must be considered.
Overall, low flatbed trailer axles are key components that affect the performance, safety and efficiency of trailers in a variety of transportation applications.
