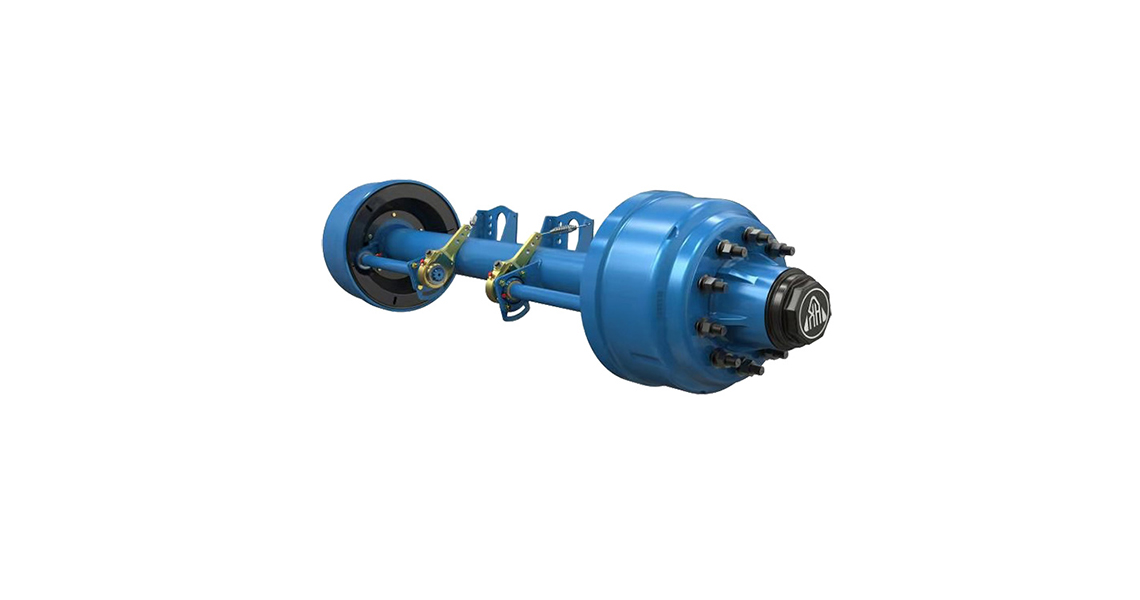

Trailer Axle
Wheel Track: 1840mm/1850mm
Total Length: 2199mm/2213MM
Bearing: HM518445/HM220149
Brake Size:Φ420*180/Φ420*220mm
XH Axle ：Distribution circle diameter: generally between 225-335. The size of the distribution circle diameter affects the installation position of the wheel and the stability of the vehicle.
Axle Type | Max Capacity | Track | Brake | CentreDistance | Axle Beam(mm) | Centre Distance | Wheel Fixing | Recom | (kg) Axle Weight | Note | |||
Stud | D1P.C.D | D2 Hole Diameter | Total Length | ||||||||||
XH-10.5 | 12 | 1820 | 420*180 | ≥950 | o127 | 368 | 10*M22*1.5 | 285.75 | 221 | ~2165 | 7.5V-20 | 360 | Bearing(Inner)HM518445/10 |
XH-10.5 | 12 | 1820 | 420*180 | ≥950 | o127 | 368 | 10*M22*1.5 | 335 | 281 | ~2165 | 7.5V-20 | 363 | |
XH-13 | 13 | 1840 | 420*180 | ≥930 | 150*150 | 388 | 10*M22*1.5 | 285.75 | 281 | ~2185 | 7.5V-20 | 363 | Bearing(Inner)HM518445/10 |
XH-13 | 13 | 1840 | 420*180 | ≥930 | 150*150 | 388 | 10*M22*1.5 | 335 | 281 | ~2185 | 7.5V-20 | 370 | |
XH-15 | 15 | 1850 | 420*180 | ≥940 | 150*150 | 396 | 10*M22*1.5 | 335 | 281 | ~2185 | 8.0V-20 | 398 | Bearing(Inner)HM220149/10 |
XH-16 | 16 | 1850 | 420*220 | ≥940 | o127 | 354 | 10*M22*1.5 | 335 | 281 | ~2185 | 8.00V-20 | 423 | |
XH-16 | 16 | 1850 | 420*220 | ≥940 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | ~2205 | 8.00V-20 | 425 | |
American Type Axle is a heavy-duty trailer commonly used in the transportation and logistics industry. It is designed to handle significant loads and is built to meet the specific standards and requirements of the American market.
Applications
Transporting heavy machinery, equipment, and construction materials.
Hauling minerals, ores, and other bulk materials.
Carrying containers, bulk goods, and oversized loads.
Transporting agricultural products and equipment.
