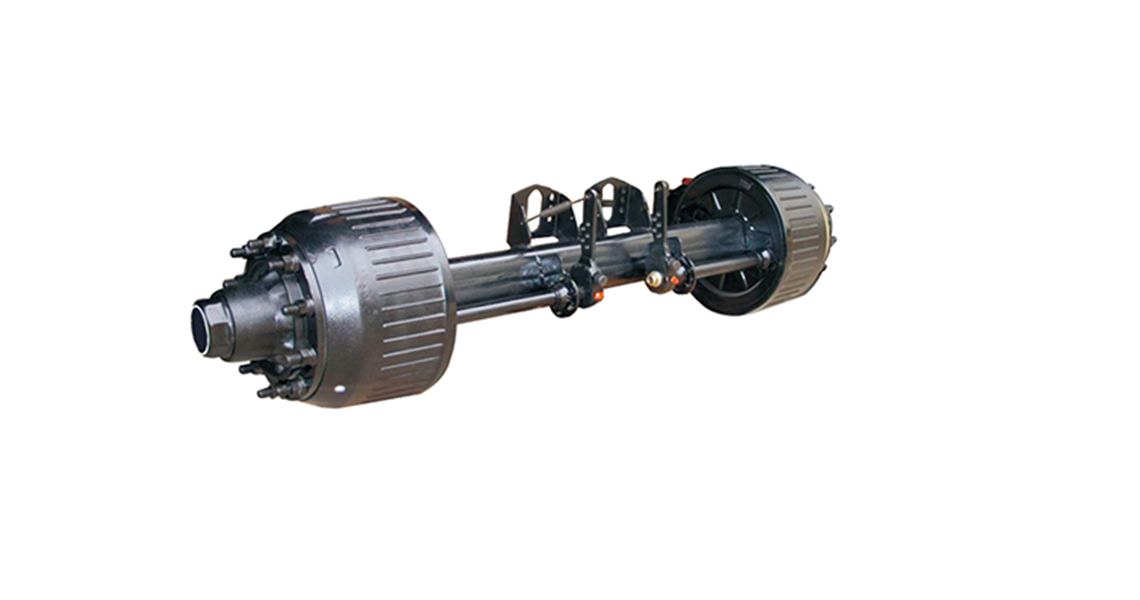

German Type Axle
20+ years of experiences (since 2005)
Implementing ISO 9001-2015
Quality testing by an independent laboratory
Warranty: 12 months since shipping date
Fatigue life: 1,700,000 cycles
Bearing position machining precision (Dia.): 0~0.025mm
Brake shoe: cylindrical grinding
Both ends of the beam are processed at the same time
The term "German style axle" typically refers to a type of trailer axle that is designed and manufactured based on German engineering principles and standards. These axles are known for their high quality, precision engineering, and advanced features. Here are some key characteristics and features of German style axles:
Precision Engineering: German style axles are known for their precise engineering and manufacturing processes, ensuring high-quality components and reliable performance.
Advanced Design: German style axles often incorporate advanced design features, such as optimized load-bearing capacities, durable materials, and efficient braking systems.
Durability: German style axles are built to withstand heavy loads and demanding operating conditions, making them suitable for a wide range of trailers, including commercial, industrial, and recreational applications.
Suspension Options: German style axles may offer various suspension options, such as air suspension or independent suspension, providing enhanced ride comfort, stability, and control.
Braking Systems: German style axles are often equipped with advanced braking systems, such as disc brakes or hydraulic systems, for improved stopping power and safety.
Compliance with Standards: German style axles are designed and manufactured in accordance with strict quality standards and regulations, ensuring compliance with safety requirements and performance criteria.
Technological Innovation: German style axles may incorporate technological innovations, such as electronic monitoring systems or smart features, to enhance overall trailer performance and efficiency.

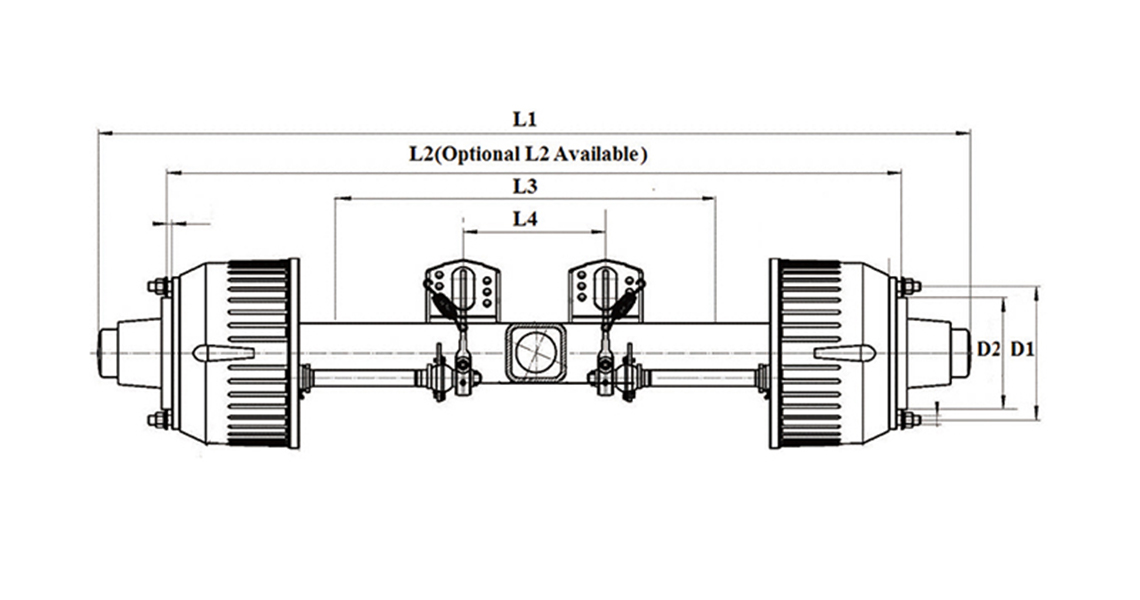

Product parameters:
Axle Type | Max Capacity | Track | Brake | CentreDistance | Axle Beam(mm) | Centre Distance | Wheel Fixing | Recom | (kg) Axle Weight | Note | |||
Stud | D1P.C.D | D2 Hole Diameter | Total Length | ||||||||||
XH-12 | 12 | 1840 | 420*180 | ≥980 | 150*150 | 420 | 10*M22*1.5 | 335 | 281 | 2156 | 7.5V-20 | ≈372 | Bearing(Inner)33118 |
Bearing(Outer)33213 | |||||||||||||
XH-12 | 12 | 1840 | 420*200 | ≥900 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | 2156 | 7.5V-20 | ≈396 | Bearing(Inner)33118 |
Bearing(Outer)33213 | |||||||||||||
XH-14 | 14 | 1840 | 420*180 | ≥980 | 150*150 | 420 | 10*M22*1.5 | 335 | 281 | 2188 | 7.5V-20 | ≈402 | Bearing(Inner)33 219 |
Bearing(Outer)33215 | |||||||||||||
XH-14 | 14 | 1840 | 420*200 | ≥980 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | 2188 | 7.5V-20 | ≈416 | Bearing(Inner)33219 |
Bearing(Outer)33215 | |||||||||||||
XH-14 | 14 | 1840 | 420*220 | ≥980 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | 2242 | 7.5V-20 | ≈430 | Bearing(Inner)33219 |
Bearing(Outer)33215 | |||||||||||||
XH-16 | 16 | 1850 | 420*220 | ≥900 | 150*150 | 356 | 10*M22*1.5 | 335 | 281 | 2242 | 7.5V-20 | ≈468 | Bearing(Inner)33314 |
Bearing(Outer)32222 | |||||||||||||
XH-16 | 16 | 1850 | 420*220 | ≥980 | 150*150 | 375 | 10*M22*1.5 | 335 | 281 | 2242 | 8.5V-20 | ≈474 | Bearing(Inner)33314 |
Bearing(Outer)32222 | |||||||||||||
Application:
German style axles are recognized for their premium quality, innovative design, and reliable performance in a wide range of trailer applications. Whether for heavy-duty transport, industrial use, or specialized trailers, German style axles are sought after for their durability, precision engineering, and advanced features.
