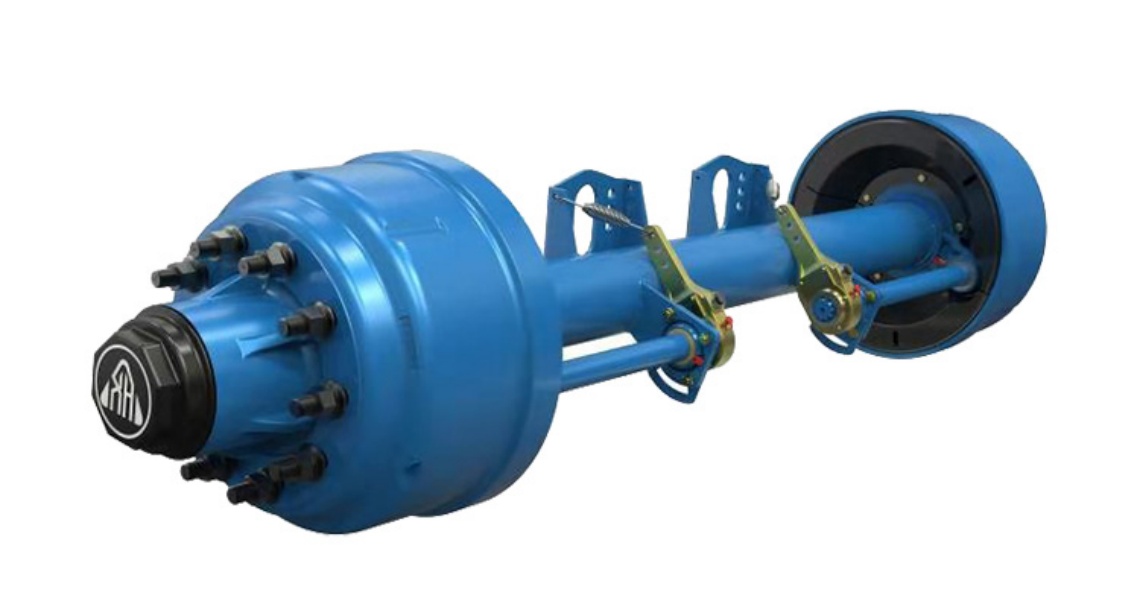

American Type 16Ton Axle
Wheel Track: 1850mm
Total Length: 2199mm
Bearing: HM518445/hm220149
Brake Size:Φ420*220mm
American-type semi-trailer with a 16-ton axle is a heavy-duty trailer designed for transporting extremely heavy loads. It is commonly used in industries that require the movement of oversized or high-weight cargo, such as construction, mining, and heavy machinery transportation.
Product Parameters
Axle Type | Max Capacity | Track | Brake | CentreDistance | Axle Beam (mm) | Centre Distance | Wheel Fixing | Recom | (kg) Axle Weight | Note | |||
Stud | D1P.C.D | D2 Hole Diameter | Total Length | ||||||||||
XH-10.5 | 12 | 1820 | 420*180 | ≥950 | o127 | 368 | 10*M22*1.5 | 285.75 | 221 | ~2165 | 7.5V-20 | 360 | Bearing(Inner)HM518445/10 |
XH-10.5 | 12 | 1820 | 420*180 | ≥950 | o127 | 368 | 10*M22*1.5 | 335 | 281 | ~2165 | 7.5V-20 | 363 | |
XH-13 | 13 | 1840 | 420*180 | ≥930 | 150*150 | 388 | 10*M22*1.5 | 285.75 | 281 | ~2185 | 7.5V-20 | 363 | Bearing(Inner)HM518445/10 |
XH-13 | 13 | 1840 | 420*180 | ≥930 | 150*150 | 388 | 10*M22*1.5 | 335 | 281 | ~2185 | 7.5V-20 | 370 | |
XH-15 | 15 | 1850 | 420*180 | ≥940 | 150*150 | 396 | 10*M22*1.5 | 335 | 281 | ~2185 | 8.0V-20 | 398 | Bearing(Inner)HM220149/10 |
XH-16 | 16 | 1850 | 420*220 | ≥940 | o127 | 354 | 10*M22*1.5 | 335 | 281 | ~2185 | 8.00V-20 | 423 | |
XH-16 | 16 | 1850 | 420*220 | ≥940 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | ~2205 | 8.00V-20 | 425 | |
Application:
Construction Industry:
Transporting heavy machinery, bulldozers, cranes, and construction materials.
Mining Industry:
Hauling large mining equipment, minerals, and ores.
Oil and Gas Industry:
Moving heavy drilling equipment and pipelines.
Wind Energy Industry:
Transporting wind turbine blades and components.
Heavy Logistics:
Carrying oversized and overweight cargo, such as industrial equipment.
Why Choose Us?
Do you provide the sample before order made?
We're glad to provide sample for testing before mass production.
What's your payment methods?
Accept payment via T/T(Bank transfer), Western Union, and PayPal.L/C is Ok when we keep Long-term stable cooperative relationship.
How long is your production time?
Working days for some products in stock
15 working days for most of goods
5 weeks for bulk order
All goods will test quality and size before package and shipping.
What's your shipping way?
By sea, by air, by train all is available, depend on you.
We choose direct shipping, so can be one week earlier than others.
