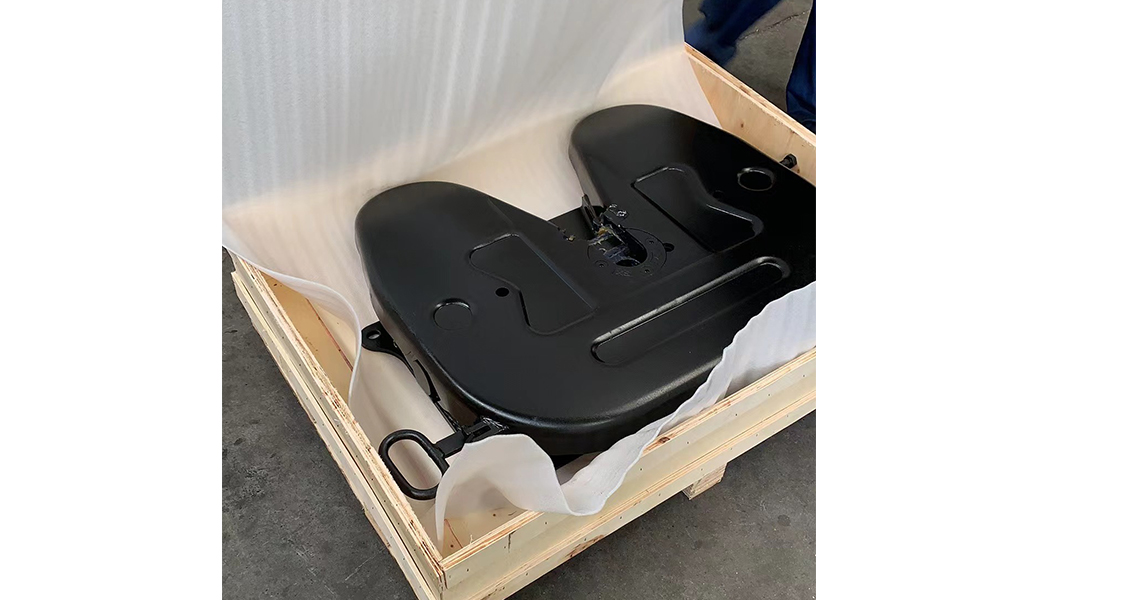

5th Wheel
Production series:forging 2", forging 3.5“, casting 2", casting 3.5"
Suitable king pin:2", 3.5" or 50, 90
Product Description：
The fifth wheel is a key component of the connection between a semitrailer (tractor) and its trailer. It is a heavy-duty hitch that allows the trailer to rotate horizontally and vertically, providing flexibility and stability during transportation.
Product Parameters：
Type | H | D-Value(KN) | Impose(kg) | Weight(kg) | Tilt Angle(U) | Total weight of outfit(kg) | Kingpin Size |
XH-37C-150 | 150 | 152 | 20000 | 150 | 15° | 65000 | 50mm |
XH-37C-170 | 170 | 152 | 20000 | 155 | 15° | 65000 | 50mm |
XH-37C-185 | 185 | 152 | 20000 | 160 | 15° | 65000 | 50mm |
XH-37C-250 | 250 | 152 | 20000 | 175 | 15° | 65000 | 50mm |
XH-37C-300 | 300 | 152 | 20000 | 180 | 15° | 65000 | 50mm |
XH-38C-195 | 195 | 260 | 36000 | 228 | 15° | 70000 | 90mm |
Application：
Freight transportation:
For long distance transportation of goods by semi-trailer trucks.
Construction: Connects heavy trucks and trailers for the transportation of construction equipment and materials.
Connects heavy trucks and trailers for the transportation of construction equipment and materials.
Logistics and Shipping Industry:
Indispensable equipment for containerized and intermodal transport.
Agriculture:
Used for heavy goods such as agricultural vehicles, transportation machinery and agricultural products.
