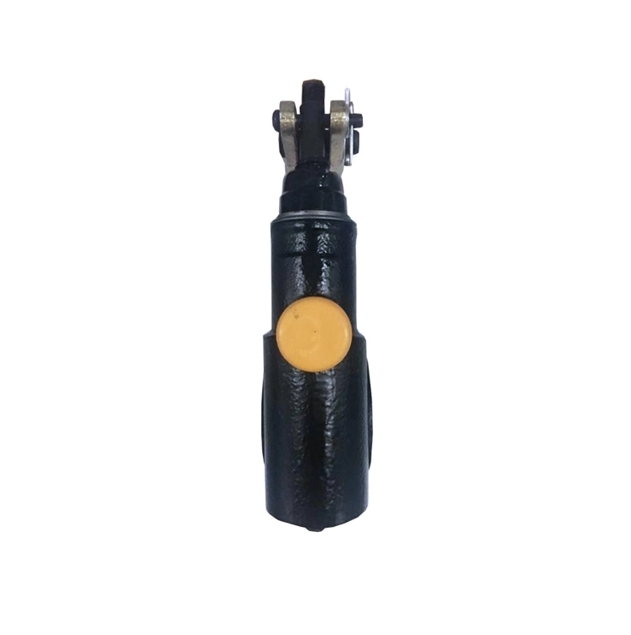

Automatic Slack Adjuster
20+ years of experience (since 2005)
Implementation of ISO 9001-2015 by an independent laboratory
Quality tested Warranty: 12 months from date of shipment
Product description:
The slack adjuster is the mechanical connection between the brake chamber pushrod and the camshaft on a cam brake. It is an important component for transmitting braking force and compensating the design gap between the brake lining and brake drum.

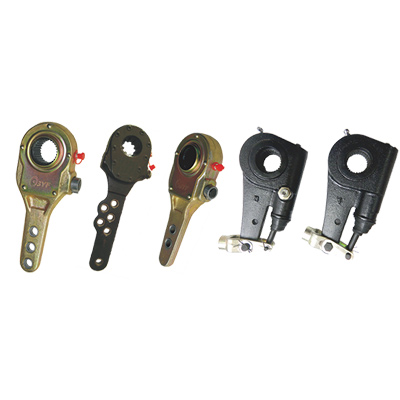

Manual slack adjuster:
The manual lash adjuster is an adjustment arm for manually adjusting brake lash. It is by far the most commonly used Slack moderator. It has the advantages of being cheap and easy to maintain, but it also has some disadvantages. Since the brake gap is controlled by a hand-adjusted arm and is operated entirely based on human experience, relatively large errors are prone to occur, seriously affecting driving safety. It also requires the operator to lie under the car to make adjustments, which is very troublesome.

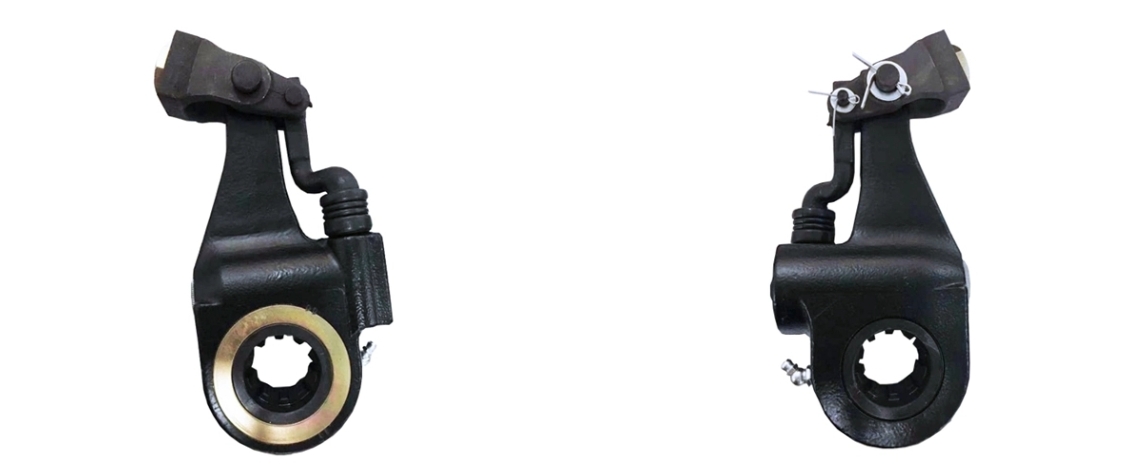

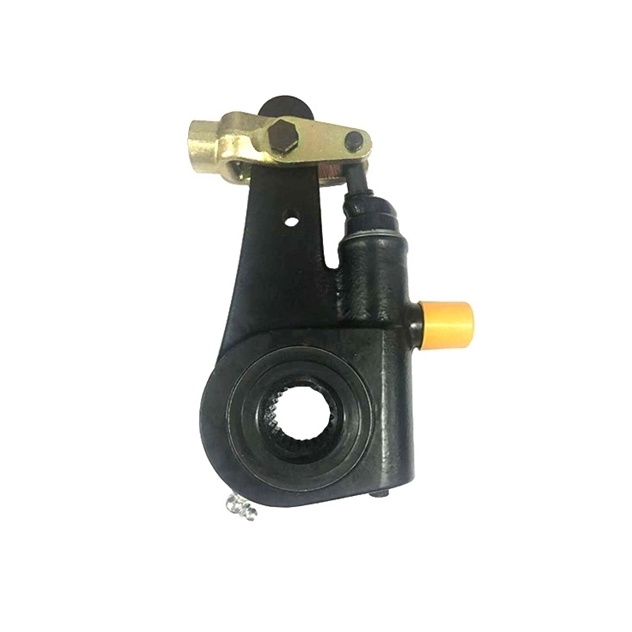

Automatic slack adjuster:
With the continuous improvement of truck technology and the gradual popularization of electronic auxiliary products for braking systems such as ABS, manual adjustment arms gradually cannot keep up with the increasing performance requirements. Automatically adjusting arms are appearing in front of us more and more.
Product parameters:
NO | OE#Reference | Spline | Arm Length (mm) | OAL | Bushing | ||||
Midland | Bendix | A | B | C | D | ||||
1 | \ | 101827 | 1 1/2"-10 | \ | 152.4 | \ | \ | 168 | ￠12.7 |
2 | \ | 289858 | 1 1/2"-28 | \ | 152.4 | \ | \ | 168 | ￠12.7 |
3 | KN44041 | 283411 | 1 5/8"-37 | 127 | 152.4 | \ | \ | 168 | ￠12.7 |
4 | KN47011 | 278321 | 1 1/2"-10 | 127 | 152.4 | \ | \ | 168 | ￠12.7 |
5 | KN44051 | 286695 | 1 1/2"-28 | 127 | 152.4 | \ | \ | 168 | ￠12.7 |
6 | \ | \ | 1 5/8"-37 | 127 | 152.4 | \ | \ | 168 | ￠12.7 |
7 | KN47001 | 278323 | 1 1/2"-10 | 127 | 152.4 | 177.8 | \ | 193 | ￠12.7 |
8 | KN44071 | 288282 | 1 1/2"-28 | 127 | 152.4 | 177.8 | \ | 193 | ￠12.7 |
9 | KN44042 | \ | 1 5/8"-37 | 127 | 152.4 | 177.8 | \ | 193 | ￠12.7 |
10 | 18-048 | \ | 1 1/2"-10 | 127 | 152.4 | 177.8 | 203.2 | 219 | ￠12.7 |
11 | \ | \ | 1 1/2"-28 | 127 | 152.4 | 177.8 | 203.2 | 219 | ￠12.7 |
12 | 18-116 | \ | 1 5/8"-37 | 127 | 152.4 | 177.8 | 203.2 | 219 | ￠12.7 |
13 | XH03080016 | \ | 1 1/2"-28 | \ | 152.4 | \ | \ | \ | M16X1.5 |
14 | XH03080017 | \ | 1 1/2"-28 | \ | 152.4 | \ | \ | \ | M16X1.5 |
Applications:
Slack adjusters are widely used on semi-trailers, full trailers, farm trailers, boat trailers and all truck axles.
FAQ:
Q: What is your advantages?
A: We are professional supplier for more than ten years, we always put the quality and price at the first place. At the same time, our products are exported to various countries, we have full experience to solve thorny problems.
If you want to know about our products and us, welcome to enquiry and email me.Thanks!
Q: What is your quality guarantee time?
A: Our quality warranty period is 12 months after receiving the goods. During the warranty period, we will supply free maintenance and replacement of damaged parts due to quality problem.
Q: What is the usual package?
A: Neutral packing: Box + carton + pallet/wooden case;
Plastic bag + Carton + pallet/wooden case;
Plastic bag + Pallet/Wooden case.
Different products have different packing. Besides, customized carton is also available.
