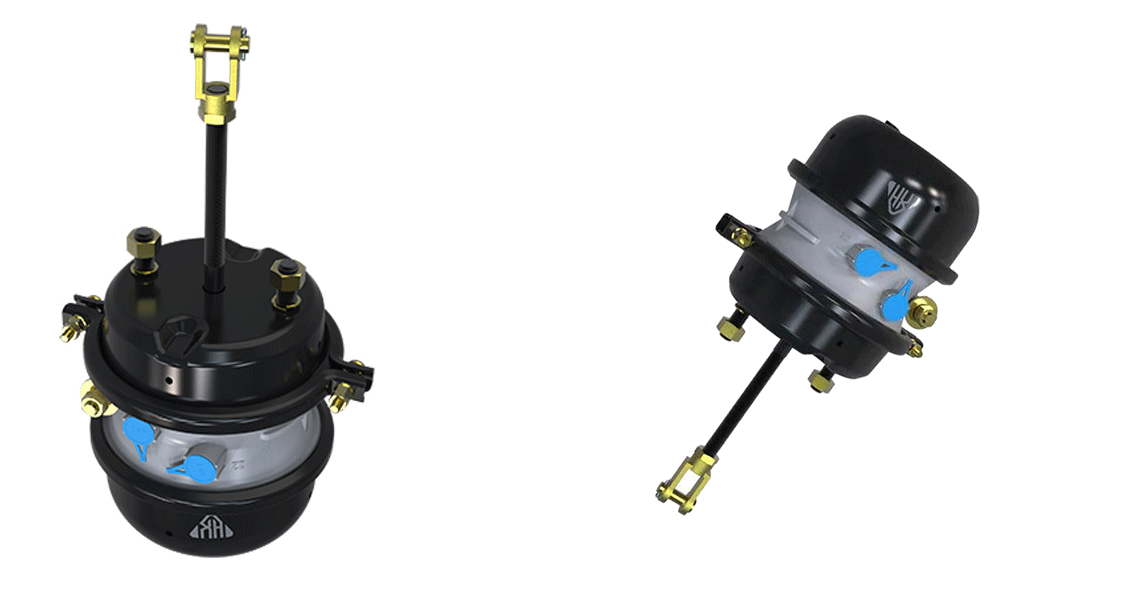

Double Air Brake Chamber for Truck
20+ years of experiences (since 2005)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality Standards: SAE J14659
Return spring：>2,000,000 cycles
Life-time: >1,000,000 cycles
Salt spray test: Passes 200 hours
Synthetic blended rubber diaphragms: Superior resistance against abrasion and fatigue cracking
Product description:
A double air brake chamber for a truck is a type of braking system component that consists of two air chambers connected to the brake system. These chambers work together to actuate the brake system when the brake pedal is pressed. The double chamber design provides redundancy and increased safety by allowing one chamber to continue functioning if the other fails. It is an essential part of the air brake system in trucks and other heavy vehicles. Regular inspection and maintenance of the double air brake chamber are crucial to ensure proper brake operation and safety on the road.
Product parameters:
Type | Stroke | R1 | R2 | L1 | L2 |
|
|
|
|
| Weight |
T-24/24 | 64 | 116 | 93 | 224 | 270 | 207 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 8kgs |
T-30/30 | 64 | 130 | 106 | 238 | 255 | 255 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 9kgs |
T-24/30 | 64 | 116 | 93 | 230 | 212 | 255 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 90° | 8kgs |
(Litre) Chamber Volume(Litre) (Measure Pressure:700kpa) | |||||||||||
Type | Service Chamber | (Parking) | (Service) | Paking Chamber | Parking Chamber Hold-off Pressure | Parking Chmber Force Output | |||||
T-24/24 | 1.04 | 1.16 | 537 | 4.98 | |||||||
T-30/30 | 1.32 | 1.78 | 500 | 6.11 | |||||||
Application:
The double air brake chamber is commonly used in heavy-duty trucks, buses, and other large commercial vehicles that are equipped with air brake systems. These types of vehicles require powerful braking capabilities to safely stop their heavy loads, making the double air brake chamber an essential component for effective braking performance.
Of course, its use also brings us great convenience. It can cut off mechanical products. Through continuous braking air and better ventilation, it can provide power for our production. It can also be carried out when starting. Reversing, speed changing and other functions. The operation is very flexible and can be applied by ordinary operators.
In terms of structural design, the appearance is relatively simple, but the powerful functions are well received by customers. The stable performance and noiselessness make our production more convenient. Therefore, the huge advantage of the brake air chamber has a profound impact on our lives.
The brake chamber must give full play to its powerful and high quality when in use, which is more conducive to our production and allows us to better manufacture products.
