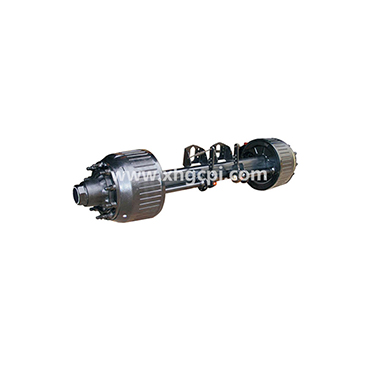

Germany Type Axle for Semi Trailer Truck Parts
20+ years of experiences (since 2005)
Implementing ISO 9001-2015
Quality testing by an independent laboratory
Warranty: 12 months since shipping date
Fatigue life: 1,700,000 cycles
Bearing position machining precision (Dia.): 0~0.025mm
Brake shoe: cylindrical grinding
Both ends of the beam are processed at the same time

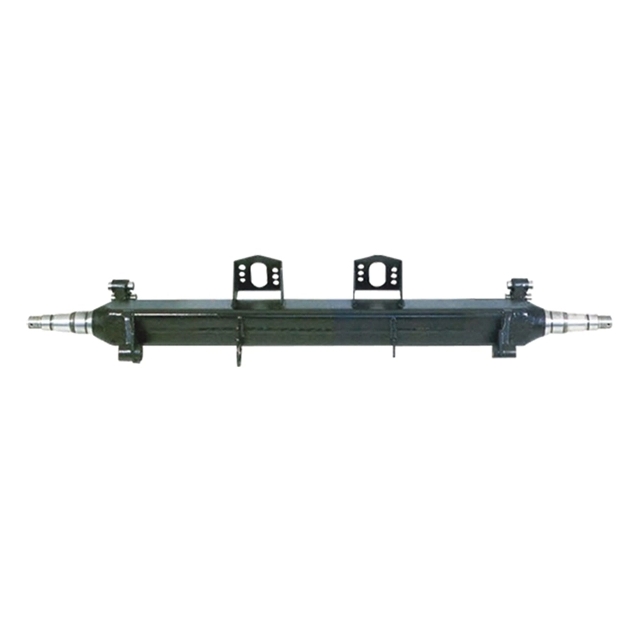

The axle of the trailer is used to support all or part of the load of the trailer, transmit various external forces and reaction forces, and ensure the normal running of the trailer. The axle mainly includes a beam assembly, a brake assembly and a hub assembly.
Product parameters:
Axle Type | Max Capacity | Track | Brake | CentreDistance | Axle Beam(mm) | Centre Distance | Wheel Fixing | Recom | (kg) Axle Weight | Note | |||
Stud | D1P.C.D | D2 Hole Diameter | Total Length | ||||||||||
XH-12 | 12 | 1840 | 420*180 | ≥980 | 150*150 | 420 | 10*M22*1.5 | 335 | 281 | 2156 | 7.5V-20 | ≈372 | Bearing(Inner)33118 |
Bearing(Outer)33213 | |||||||||||||
XH-12 | 12 | 1840 | 420*200 | ≥900 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | 2156 | 7.5V-20 | ≈396 | Bearing(Inner)33118 |
Bearing(Outer)33213 | |||||||||||||
XH-14 | 14 | 1840 | 420*180 | ≥980 | 150*150 | 420 | 10*M22*1.5 | 335 | 281 | 2188 | 7.5V-20 | ≈402 | Bearing(Inner)33 219 |
Bearing(Outer)33215 | |||||||||||||
XH-14 | 14 | 1840 | 420*200 | ≥980 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | 2188 | 7.5V-20 | ≈416 | Bearing(Inner)33219 |
Bearing(Outer)33215 | |||||||||||||
XH-14 | 14 | 1840 | 420*220 | ≥980 | 150*150 | 354 | 10*M22*1.5 | 335 | 281 | 2242 | 7.5V-20 | ≈430 | Bearing(Inner)33219 |
Bearing(Outer)33215 | |||||||||||||
XH-16 | 16 | 1850 | 420*220 | ≥900 | 150*150 | 356 | 10*M22*1.5 | 335 | 281 | 2242 | 7.5V-20 | ≈468 | Bearing(Inner)33314 |
Bearing(Outer)32222 | |||||||||||||
XH-16 | 16 | 1850 | 420*220 | ≥980 | 150*150 | 375 | 10*M22*1.5 | 335 | 281 | 2242 | 8.5V-20 | ≈474 | Bearing(Inner)33314 |
Bearing(Outer)3222 | |||||||||||||
Application:
Axle is widely used in skeleton truck, low flatbed truck, dump truck, car transport trailer, tank truck, van trailer, full trailer, logging transport trailer, agricultural vehicle and so on. Axle classification has German series semi-trailer axle, American series semi-trailer axle, spoke series semi-trailer axle, disc brake series semi-trailer axle, low flat series semi-trailer axle, agricultural series trailer axle, Brazilian trailer axle, York trailer axle, etc.
