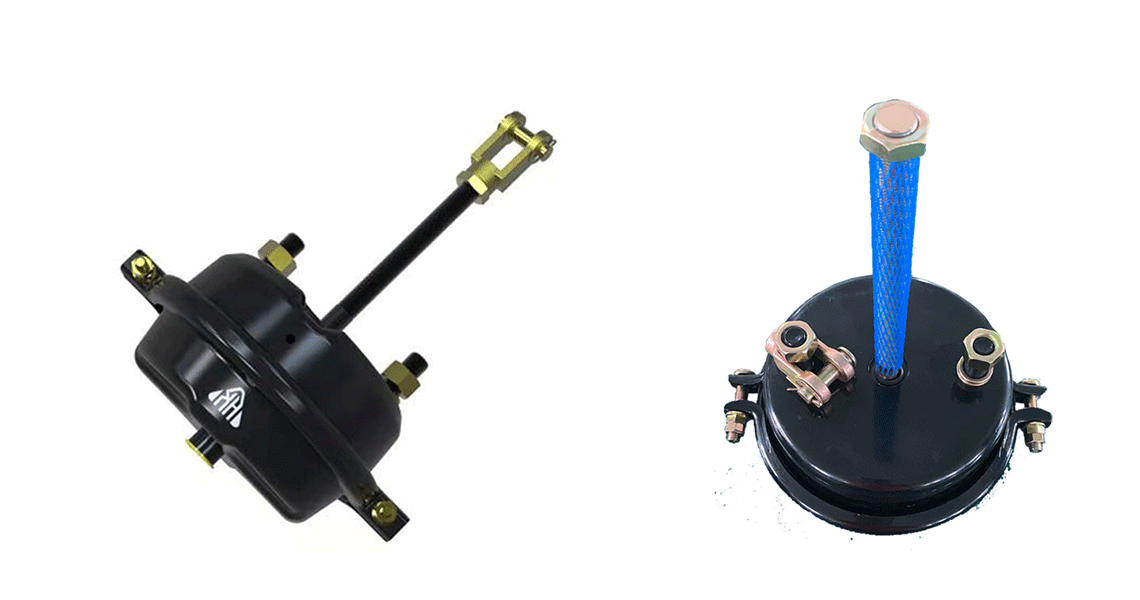

Type 30 Brake Chamber
20+ years of experiences (since 2005)
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality Standards: SAE J14659
Return spring：>2,000,000 cycles
Life-time: >1,000,000 cycles
Salt spray test: Passes 200 hours
Synthetic blended rubber diaphragms: Superior resistance against abrasion and fatigue cracking
Product Description:
The Type 30 brake chamber is another common type of air brake chamber used in heavy-duty vehicles like trucks and trailers. Similar to the Type 24 chamber, the Type 30 chamber is also designated by its size and specifications, with a specific diameter and design to meet the braking requirements of larger vehicles.
The Type 30 brake chamber is larger in size compared to the Type 24 chamber, providing increased braking force for heavy-duty applications. It is designed to work in conjunction with the air brake system to engage the brakes when the driver applies pressure to the brake pedal, helping to slow down or stop the vehicle safely.
Using the correct size and type of brake chamber, such as the Type 30, specified by the vehicle manufacturer is important to ensure optimal braking performance and safety. Regular inspection, maintenance, and replacement of the Type 30 brake chamber as needed are essential to ensure the proper operation and reliability of the braking system in heavy-duty vehicles.
Parameters:
| Type | Stroke | R1 | R2 | L1 | L2 | Pushrod Thread Length L4 | Pushrod Thread | Air Inlet Thread | Mounting Bolt Thread | Mounting Inluded Angle | Weight |
| T-24 | 64 | 116 | 93 | 110 | 227 | 207 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 4kgs |
| T-30 | 64 | 130 | 106 | 110 | 255 | 255 | 5/8"-18UNF2A | 3/8"-NPTF | 5/8"-1 1UNC2A | 45° | 4.6kgs |
| Type | Chamber Volume(Litre) (Measure Pressure:700kpa) | Parking Chamber Force Output (kn) | (Stroke:38mm) | Diaphragm | |||||||
| 400kpa | 700kpa | Working Area(SQ cm) | Dia.At Clamp Point (mm) | ||||||||
| T-24 | 1.08 | 5.58 | 9.8 | 141 | 161 | ||||||
| T-30 | 1.48 | 7.3 | 12.8 | 180 | 181 | ||||||
Applications:
The brake air chamber is now mainly used in textile machinery, packaging machinery, printing machinery, textile machinery in these more important industrial fields, so its use has very important significance.
Of course, its use also brings us great convenience. It can cut off mechanical products. Through continuous braking air and better ventilation, it can provide power for our production. It can also be carried out when starting. Reversing, speed changing and other functions. The operation is very flexible and can be applied by ordinary operators.
